二元梯度泵系统，配置GUI软件，应用方法研发。

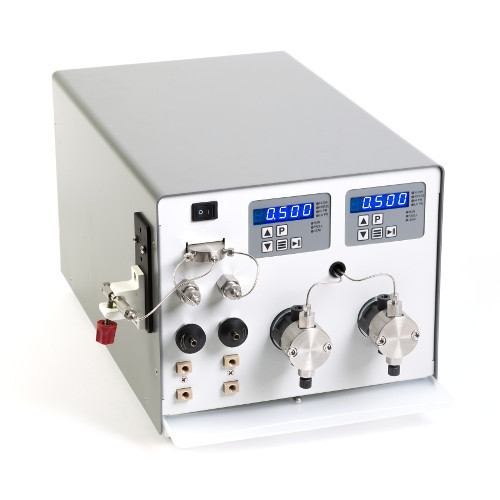

The customizable Binary Gradient Pumping System， part of the LS Class， is an advanced pumping system for two-solvent high-pressure gradient applications. The system is designed with two single-head positive displacement piston pumps integrated into a functional enclosure.

Equipped with belt drive pump mechanisms with shaped cam and electronic fast refill， the system produces very low pulsation. Fluid path materials are stainless steel and PEEK， with optional titanium. Available features include Prime-Purge Valves for each channel， Pulse Dampeners for reduced pulsation， pressure monitoring with integrated transducer， bulkhead outlet filters， an in-line， high-pressure， low-volume mixing chamber， and a drip tray with leak sensor.

The system comes equipped with the SSI Gradient Control Board， which has an integrated Software GUI for customizable method development and input. This allows for autonomous binary gradient formation without the need for continuous computer monitoring and control after downloading the method onto the control board. Serial commands may be used to directly set pump flow rates， start/pause， or monitor status. Additonal features of the Gradient Board include control of two solvent-selection valves， multiple timed events， and leak detection.

BLS CLASS 高压二元梯度输液恒流泵参数：

备注：* 与所使用溶剂和压力有关

** 带均速器的结果

销售美国SSI全系列输液泵产品，如需咨询致电我公司！

BLS CLASS 高压二元梯度输液恒流泵主要产品货号如下：

BLS010SFT1BDG

BLS010SFT1ADG

BLS010SFT1A

BLS005SFT1A
