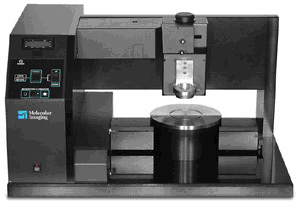

产品介绍 技术参数: 大范围高精度扫描探针显微镜 安捷伦5500LS Specifications Stage - Standard vacuum chuck size: 150 mm - Sample thickness: up to 35 mm - Examination area: 150 mm x 150 mm - Fully motorized, controlled optics - Optical resolution: 2 μm Compatibility - Compatible with Agilent 5 series family of products and all AC modes - Compatible with multi-purpose scanners - Compatible with CSAFM, STM, and EFM/MFM - Compatible with imaging in air and fluids, including but not limited to life sciences, electrochemistry, and corrosion applications - Compatible with temperature control (-30oC to 250oC) S c a n n e rs Large Scanner - Scanning range: 100 μm x 100 μm - Z range: 7 μm - Vertical noise: 0.5Å RMS Small Scanner - Scanning range: 10 μm x 10 μm - Z range: 2 μm - Vertical noise:<0.1Å RMS 主要特点: 安捷伦大样品台原子力显微镜可以快速、准确地实现针尖定位和样品定位。高精度的马达驱动能帮助您自动准确定位到您感兴趣的区域,同时带有记忆功能,可以自动迅速而准确地回到原来每个样品表面成像的位置,便于进行更多的深入研究。同时5500LS能很好地满足大样品在空气、液体和温度控制下成像。 优势 * 自动的光学缩放与聚焦,使用简单方便 * 大范围内准确定位,分辨率优于2µm * 150mm真空吸盘(标准),可安放6英寸晶片 * 可提供8英寸大夹具的选件,以适应更大的样品尺寸 应用 * 半导体:Si晶片、器件 * 数据存储材料:CDs、DVDs、硬盘等等 |
