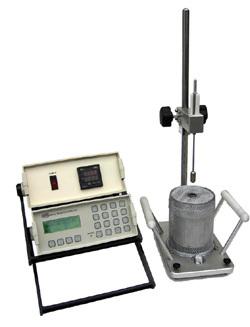

The High Temperature Viscometer consists of a support stand with an electric heater and a sample tube filled with the liquid whose viscosity is to be determined. Viscosity of the sample is determined by measuring the falling time of a controlled needle through a predetermined distance of the fluid held in a sample tube. The falling time is measured automatically by means of Hall sensors and a magnet in the weight holder. For Non-Newtonian fluid， a computer program is available from SBS.

Applications:

Adhesives， Aerosols， Automobile Fluids， Biomaterials， Coal Slurries， Coatings， Colloids， Cosmetics， Creams， Dairy Products， Detergents， Dispersions， Emulsions， Fertilizers， Foams， Fuels， Gels， Grease， Honey， Inks， Ketchup， Latex， Lubricants， Mayonnaise， Milk， Oils， Ointments， Paints， Petroleum， Polymers， Proteins， Pulp， Resins， Shampoos， Slurries， Soaps， Solutions， Surfactants， Suspensions， Varnish and many more.

技术参数：

Specifications:

1、Viscosity Range 1 to 108 cP (mPa s)

2、Temperature Range -40 to 200°C

3、40 to 350°C

4、Accuracy & Repeatability Better than 2%

5、Test Sample Volume Approx. 1.5 cm3

6、Needle Material Metal (Al， Ti， Stainless Steel)

7、Needle Densities 6 to 1000 g/cm3

8、Total Instrument Weight 5.4 kg (12 lbs)

主要特点：

Key Features

1、Disposable Sample Tube Available

2、No Sample Tube Cleaning

3、Measures Absolute Viscosity without Instrument Calibration

4、Minimal Disturbance of Sample's Mechanical Structure

5、Automatic Falling Time Measurements to 0.001 s

6、High Temperature up to 350°C

7、Quick and Easy Viscosity Measurement

8、Microprocessor-based Console with RS-232 Interface
