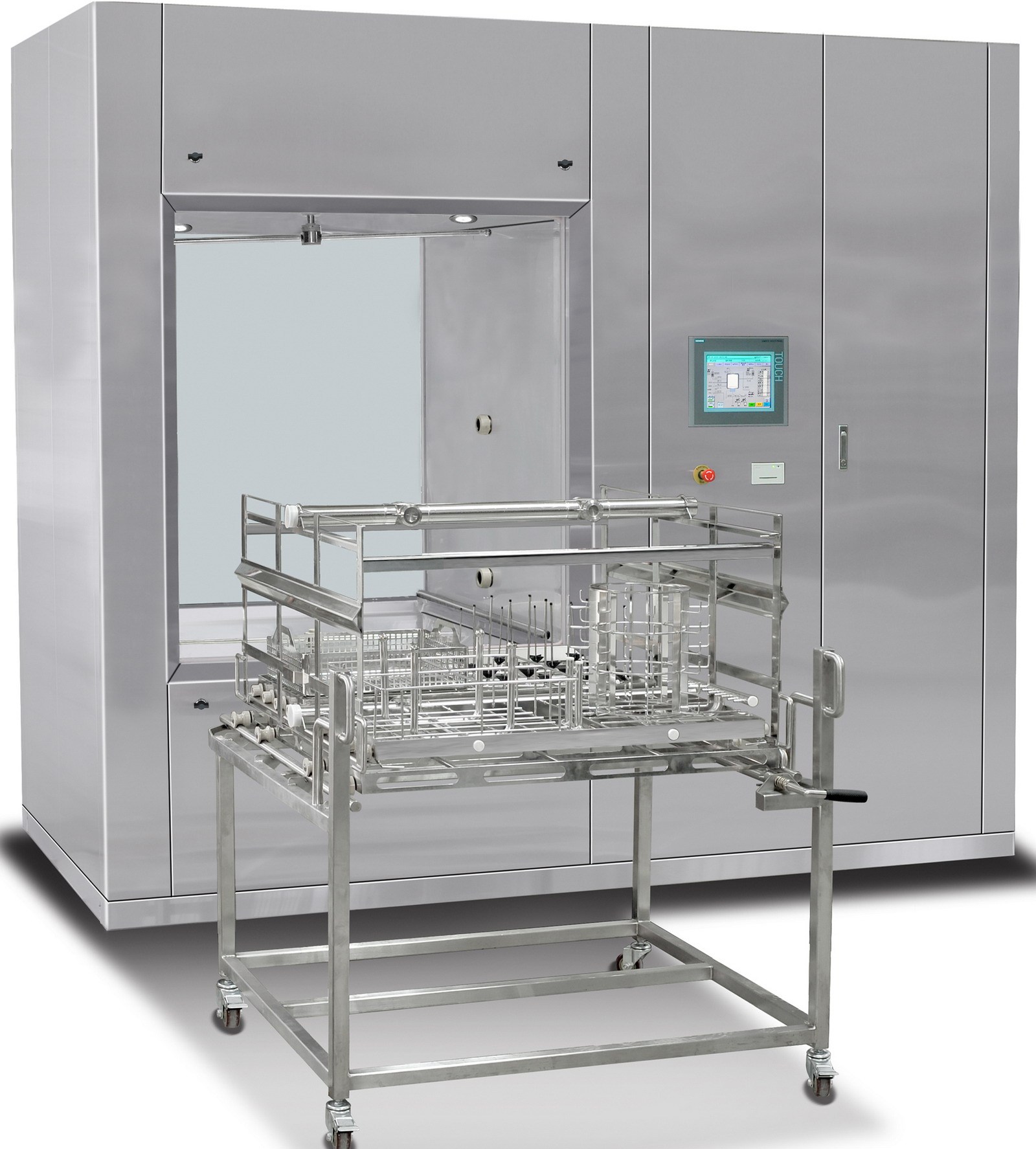

上海悉典的NOBEL系列清洗机满足从0.6立方米到3立方米的清洗容积需求。

Sanitation Engine NOBEL series washer-disinfector has capacity from 600-3000L

产品特点：

Features：

腔体

Chamber

采用SUS316L不锈钢

内部电抛光 ，无死角，便于清洁

内表面电抛光RA≤0.6um

内部角落采用圆弧处理，腔体底部倾斜至排水口

不锈钢滤网保护水循环管路不被杂物堵塞

所有连接为卫生型卡箍连接，EPDM/PDFE密封

SUS316L stainless steel

Electropolished inner surface， RA ≤ 0.6um

Stainless steel strainer to protect water circulation pipe

All connections meets sanitary standards， and using EPDM / PDFE seal

密封门

Door

可提供单扉，双扉通过式，可选择手动或者自动控制

采用双层防热镀膜耐腐蚀钢化玻璃

Available in single door and double door， you can choose manual or automatic control

Double heat resistant glass coating

管道和阀门

Pipes & Valves

自动轨道焊接，管道坡度不小于2%

符合GMP标准

清洗循环管路阀门均采用隔膜阀

Automatic orbital welding， pipe slope is not less than 2%

GMP standard

Diaphragm valves are used for circulation line cleaning

泵

Pump

采用进口卫生级循环泵

带有循环泵压力检测器

Imported sanitary circulation pump

A pressure detector with a circulation pump

清洗剂供给

Cleaner Supply

可根据用户需求订制计量泵数量

具备清洗剂液位传感器，配备流量计检测清洗剂的正确添加

双通道电导率仪检测清洗液浓度指示清洗终点

Customized pumps

Cleaning fluid level sensor

Dual-channel conductivity meter indicate the concentration of cleaning fluid and pointing the ending

空气过滤器

Air Filter

两套高温HEPA过滤器

每套高温HEPA过滤器均配有完整性测试仪接口

Two high-temperature HEPA filters

Each high-temperature HEPA filtration system comes with integrity test interfaces

干燥系统

Drying System

双重高温HEPA过滤系统，一套用于清洗容器内壁干燥

一套用于清洗腔室干燥

采用工业蒸汽加热，最高温可达110摄氏度

Dual high temperature HEPA filtration system， one for cleaning objects wall drying， one for chamber drying

Using industrial steam heating system， the maximum temperature can go up to 110 degrees Celsius

控制系统

Control System

采用SIMENS S7-300PLC控制系统

双扉通过式设备设备每侧都配有触摸屏

带有密码保护的控制界面

带有工业标准网络解决方案的过程数据管理

SIMENS S7-300PLC control system

Touch screen on each side for two door system

Security login system

Network solutions with industry-standard data management process

测试及验证

Testing & Verification

支持FAT测试

可以提供符合GMP要求

符合FDA要求

Support FAT testing

Meet GMP requirements

FDA compliant

文件

Documents

制造文件包

自控系统文件包

测试和验证文件包

安装手册，用户手册和技术手册

Manufacturing documentation package

Automatic control system package

Testing and validation package

Installation manuals， user manuals and technical manuals

清洗架和附件

Cleaning Racks & Accessories

客户订制化的清洗架车

清洗架车可配6-8组清洗架

灵活的清洗架组合方式，提高利用率

采用模拟电脑设计技术，保证清洗的覆盖效果

Customized cleaning rack with wheels

Wash rack cart can be equipped with 6-8 different racks

Flexible cleaning rack combinations

Analog computer design technology to ensure the cleaning result
