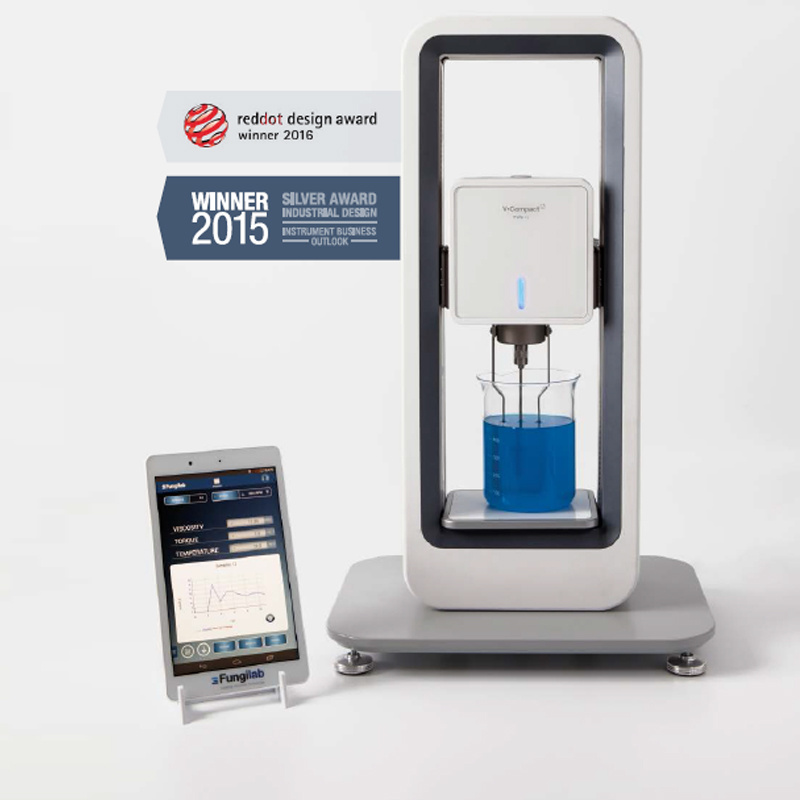

V?Compact 粘度计由一个安装在8英寸的平板电脑上的APP来进行控制的，可以直接在平板电脑上读取测量结果，并可以按客户要求绘制图表。
V-Compact 粘度计有不同测量范围的机头（L，R or H），这些机头可单独购买，并且更换方便，可轻松实现所有范围的粘度测量。
TECHNICAL SPECIFICATIONS |
Repeatability | 0.2% |
Accuracy | +/-1%full scale |
Temperature Range | -40℃to+300℃ |
Temperature Resolution | 0.1℃ |
Temperature accuracy | +/-0.3℃ |
Temperature Probe | PT100，Class A |
Power Supply | 90-240VAC，50/60Hz |
Spindles manufactured with AISI 316 stainless steel |
VISCOSITY RANGES |
|
Code | Model | Measurement Range(cP) | Speed(rpm) |
|
VC101003 | V-COMPACT L | 1*-6.000.000 | 0.01-250 |
|
VC101002 | V-COMPACT R | 25**-40.000.000 | 0.01-250 |
|
VC101001 | V-COMPACT H | 200***-320.000.000 | 0.01-250 |
|
Viscosity measurement ranges referenced from 0.1-200RPM |
|
*Viscosity range referenced from 0.1 to 200RPM with LCP accessory. Without LCP the lowest viscosity measured is 15cP. |
|
**Using the R-1 spindle at 60 rpm（faster speeds may create turbulences in the sample） |
|
***Using the R-1 spindle at 60 rpm |
|
|
|
|
