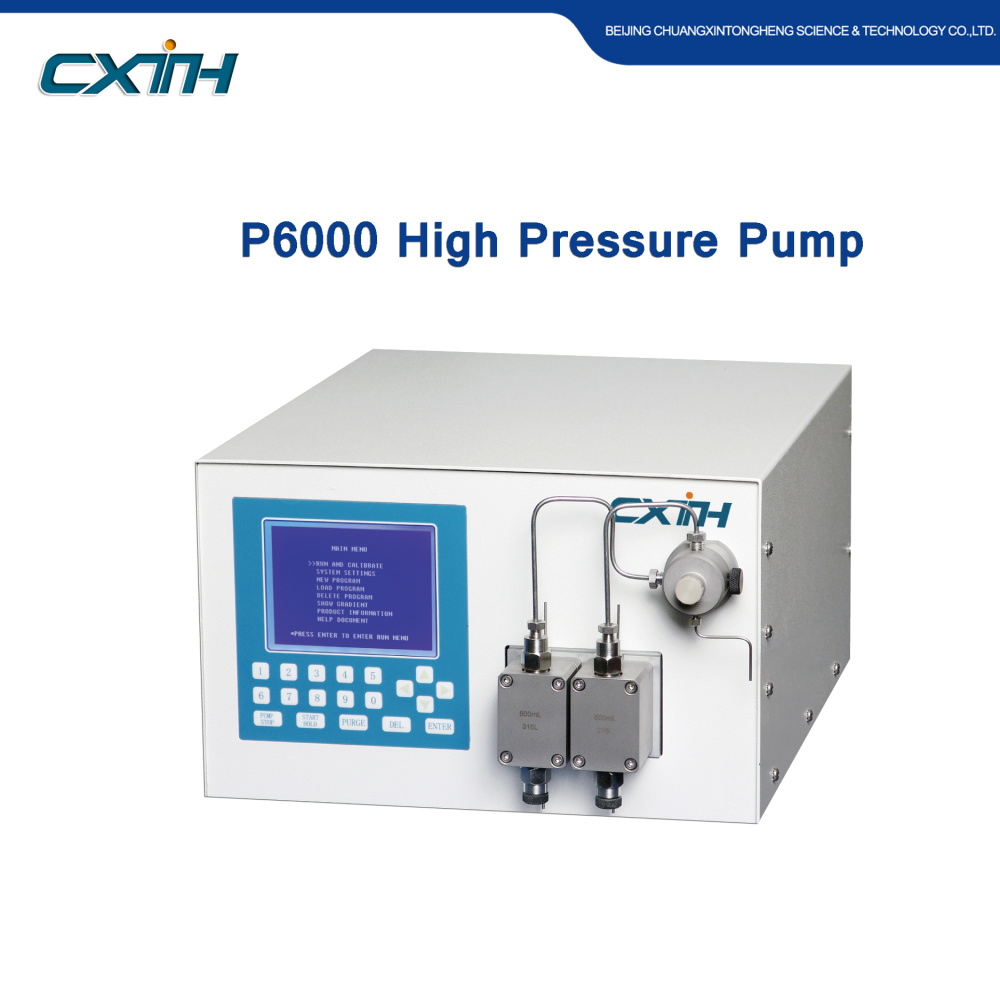

产品介绍 创新通恒生产的制备泵为双柱塞设计使用先进的伺服电机采购原装进口的单向阀和密封圈致力于铸造优良品质 CXTH’s preparative HPLC pump is a dual piston systemAdvanced server motorExported check valve and sealing ringProviding high quality products for the customer 订货信息: 序号 说明 1 P6000型高压输液泵,100ml 不锈钢泵头 1 2 P6000型高压输液泵,100ml PEEK泵头 1 3 P6000型高压输液泵,250ml 不锈钢泵头 1 4 P6000型高压输液泵,250ml PEEK泵头 1 5 P6000型高压输液泵,500ml 不锈钢泵头 1 6 P6000型高压输液泵,500ml PEEK泵头 1 7 P6000型高压输液泵,1000ml 不锈钢泵头 1 8 P6000型高压输液泵,1000ml PEEK泵头 1 技术参数: 输液方式:双柱塞并联模式 流量精度: ±1% 流量重复性: RSD≤0.5% 显示: 320 X 240点阵大屏幕液晶显示,可调蓝色背光 系统保护: 最大最小压力可调,高于最大压力或低于最小压力2min自动停泵,并自动存储数据 系统连接: 1/8”管路连接 控制: 独立模式通过前面板的按键设定所有工作参数。工作于高压梯度模式时,其中一台泵为主泵,控制其他相同型号的高压输液泵,并通过屏幕上的梯度曲线对所显示的梯度方式进行验证。串口模式通过创新通恒色谱软件(如CXTH3000、Clarity等)控制 通讯: 串口模式RS-232 电源功率: 220V±10%,50Hz,400W 梯度支持: 最多可支持4元高压梯度 GLP信息: 自动记录泵运行时间 Ordering Details: No. Description 1 P6000 HPLC pump with 100ml pump head(stainless steel) 1 2 P6000 HPLC pump with 100ml pump head PEEK 1 3 P6000 HPLC pump with 250ml pump head(stainless steel) 1 4 P6000 HPLC pump with 250ml pump head PEEK 1 5 P6000 HPLC pump with 500ml pump head(stainless steel) 1 6 P6000 HPLC pump with 500ml pump head PEEK 1 7 P6000 HPLC pump with 1000ml pump head(stainless steel) 1 8 P6000 HPLC pump with 1000ml pump head PEEK 1 SPECIFICATION: Hydraulic system :Dual piston in parallel pump Flow rate accuracy: ±1% Flow rate precision: RSD≤0.5% Display: Graphics LCD 320 X 240 blue background color Protection: Adjustive Pmax & Pmin, the pump stop automatically when the pressure higher than Pmax or lower than Pmin for 2 minutes, meanwhile the data will be automatically saved System connection: 1/8” capillaries Control: Stand-alone mode by front keypadHPG Mode:one pump work as master,others work as slave CXTH control software(e.g. CXTH3000,Clarity etc. ) Communications: RS-232 Power supply: 220V±10%,50Hz,400W Gradient: Up to quaternary HPG GLP: Record running time automatically |
