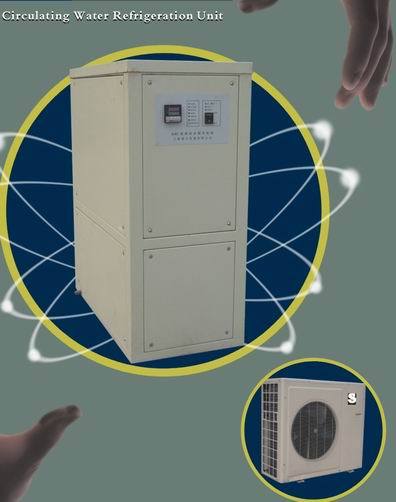

SL401型循环水制冷机组是本公司自主开发出来的**一代的高效节能换热水循环制冷设备。本设备集蓄冷技术、微超调、微欠调PID调节智能温控仪表、高效低噪声循环水泵、单元集成化工艺、分体式设计等国际上***技术于一体，是一个高科技、高技术、新工艺、新观念的综合体。本设备的推出，将换热水循环制冷设备的技术水平推向了一个新的高度。

SL401型循环水制冷机组主要为X射线衍射仪、荧光光谱仪、扫描显微镜、激光器、能谱、真空成型机、高频机、MOCVD等需用恒温冷却水源的精密仪器设备的配套产品。

The SL401 Circulating Water Refrigeration Unit is a most up-to-date generation of high efficiency energy saving heat exchange refrigeration facility independently developed by out company. It is a product consists of most advanced techniques in the world ， such as cold accumulation， fine overshoot and underload PID intelligent temperature controller， high efficiency low noise circulating water pump， unit integration technology， separation design， etc. With a combination of high-tech， new technology， and new concept， this product pushed the heat exchange circulating water refrigeration facility engineering to a higher level.

The SL401 Circulating Water Refrigeration Unit is mostly used as a supporting product for precision instrument facilities with the need of isothermal cooling water， for example， the X-ray diffractometer， fluorescence spectrometer， scanning microscope， laser， energy spectrometer， vacuum forming machine， high-frequency generator， MOCVD， etc.

技术参数：

最大制冷能力：8kW； Maximum refrigeration: 8kW

控制温度范围：10～30℃；

控制温度精度：±1℃；

循环水流量：60L/min；

最大出口水压：3kg/cm

制冷剂：R22

室内环境温度：5～40℃

输入功率：2kw;

电源：380～415V，50～60Hz，三相.

Range of temperature control: 10～30℃

Accuracy of temperature control: ±1℃

Flux of circulating water: 60L/min

Maximum outlet water pressure: 3kg/cm

Refrigeration agent: R22

Indoors ambient temperature: 5～40℃

Input wattage: 2kw

Power supply: 380～415V，50～60Hz， 3 phase

主要特点：

◆采用分体式结构，将压缩机、风扇、冷凝器等置于室外，使室内机组结构紧凑、噪音低；

◆合理的水循环使换热器换热效率高，坚固耐用、不易阻塞、抗冻能力强；

◆采用蓄冷动态平衡连续工作方式，因而大大减小了室内机组贮水箱的体积，只需有60升水就可满足工作要求，且温度控制准确、稳定；

◆操作十分简便，只需按启动开关，机组即进入工作状态；

◆采用温控节点控制自动加热系统，保证北方地区冬季能正常使用；

The structure of SL401 has separation design with compressor， fans， condenser installed outdoors， hence the indoors unit has compact conformation and low noise;

The heat exchanger of this product has well designed water circulation device which increases head exchange efficiency. It has strong robustness， less blocking， and good freezeproofing ability;

This product works on continuously running duty with dynamically balanced cold accumulation， and hence has greatly reduced water storage tank in the indoors unit. Only 60 liters of water is needed to meet the basic work request， and the temperature control is accurate and steady;

The operation of this product is very convenient. Just press the start button， and it will enter work mode.

With the temperature-controlled nodal operation self-heating system， this product can be used in the winter season of north China.
