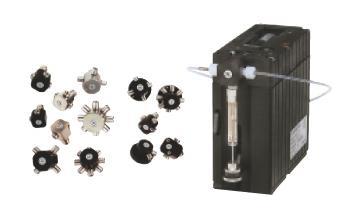

产品介绍 仪器简介: 康林公司还可提供PSD/3 PSD/4 PSD/8注射泵 技术参数: PSD/2 特性(Specifications): 电源条件(Power Requirements): 电压(Voltage): 24 VDC 电流(Current): 最大1 安培(1 amp Maximum) 注射器(Syringes): 针类型(Syringe Type): Hamilton 气密性仪器针 型号(Sizes): 25 uL, 50 uL, 100 uL, 250 uL, 500 uL, 1 mL, 2.5 mL, 5 mL, 10 mL, 25 mL 针材质(Fluid Contact): Glass, PTFE, CTFE or UHMWPE 环境条件(Environment) 操作温度 Operating Temperature: 60°F to 95°F (15°C to 25°C) 操作湿度 Operating Humidity: 20% to 90%, non-condensing 储存温度 Storage Temperature: -5°F to 158°F (-20°C to 70°C) 储藏湿度 Storage Humidity: 20% to 95%, non-condensing 传输设备和软件特征(Communication & Software Features) 界面(Interface): RS-232, 数字(digital) 波率(Baud Rate): 1200, 2400, 4800, and 9600 菊花环(Daisy Chain): 16 modules 记忆存储(Memory Storage): 8 methods via download; 2 Kbytes TTL输入/输出(TTL I/O): 6 input - 6 output 主要特点: • 直流电驱动泵 • 模块包括针和驱动指令 • 适用于RS-232 or TTL通信系统 • 16单位的菊花环 • 暂缺度 ±1.0% ;误差< +0.2%, 适用于 N.I.S.T. • 每针的速度2-60秒 |
