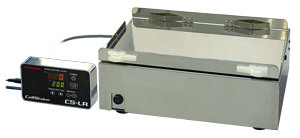

High humidity-resistant shakerCellShake CS-LR Product Code：0081704-000 High humidity-resistant shaker for use in a moist chamber such as CO2 incubator and plants growth chamber. Switch between reciprocal/rotary for multipurpose.Image of using large shaking rack (option)Image of using double shaking rack (option)Image of using universal shaking rack and clamps (option)
Main Application ●Mammalian cell cunture ●Culture of micro organism and plant cells in moist chamber or room ●General shaking applications Features High humidity-resistant shakerExample of combination with CO2 incubatorA magnetic controller can be mounted on the doorCS-LR is high humidity-resistant shaker which can operate under ?95% humidity conditions， and its best suited for use in CO2 incubator and plants growth chamber. CS-LR is designed to operate inside a chamber and generates only minimal additional heat which affect cell growth conditions. An external， magnetic controller can be mounted on the incubator door to show status without opening the door. Optional rack for CS-LR: CS-3024 (water tray is not included) * We have optional rack to set CS-LR above a water tray for use in a CO2 incubator. Stainless steel construction for protection from microbesOutside of shaker is stainless made， and shaker platform is treated with “KENIFINE (TM)” antibacterial coating which has outstanding anti-bacterial / anti-mildew / anti-algal / anti-virus properties. * “KENIFINE (TM)” is the trademark of KOBE STEEL LTD. Switch between reciprocal/rotary for multipurposeCS-LR is multipurpose shaker which can be used by switching reciprocal and rotary shake to meet with container shape. For example， low-speed reciprocal shake is suited for cell culture dish， and rotary shake is suited for erlenmeyer flasks (by using universal shaking rack and clamps). Precise and smooth shaking even at low speeds allows gentle cell culturing. Various shaking racks are optionalWe have variety of optional shaking rack to meet with variety of containers.
Specifications ModelCS-LRSurroundings temperatureSurroundings temperature: 0oC - +50 oCHumidity : ?95% ±5% RHShaking Methodreciprocal / rotaryShaking Speed15 - 200rpm (*1)Amplitude25mm (factory setting， *2)Platform size300 x 200mmLoading LimitApprox. 3kg (include shaking rack and holder)Applicable Container / NumberFor example;Well plates x4 Erlenmeyer flask: 100mLx12 or 250mL x6 or 300mL x6 or 500mL x3Shaking speed displayDigitalMaterialShaker body and platform : Stainless (SUS304)Safety device / functionFuse， motor overload protection， overvoltage protectionDimensions302 x 240 x 129 Hmm (Shaker)125 x 30 x 70 Hmm (Control box)WeightApprox. 7kg (Shaker)Approx. 0.5kg (Control box)Standard AccessoryAC adapter， bar (for switching reciprocal / rotary)， power cable (2m)Power SupplyAC100V， 1A (*1) When use with double shaking rack or sticky sheet (option)， please shake below 100rpm. (*2) You can switch amplitude of CS-LR to 20mm (please ask). ●Shaking racks and clamps are options. |
Options
Clamp
CF-0100
Product Code：0000467-000
Parts to fix Erlenmeyer flask by installing it on Universal shaking rack and angle rack
Features
Parts to fix Erlenmeyer flask by installing it on Universal shaking rack and angle rack
Specifications
| Model | CF-0100 |
| Application Container | 100ml Erlenmeyer flask |
Clamp
CF-0250
Product Code：0056257-000
Parts to fix Erlenmeyer flask by installing it on Universal shaking rack and angle rack
Features
Parts to fix Erlenmeyer flask by installing it on Universal shaking rack and angle rack
Specifications
| Model | CF-0250 |
| Application Container | 250ml Erlenmeyer flask |
Clamp
CF-0300
Product Code：0000469-000
Parts to fix Erlenmeyer flask by installing it on Universal shaking rack and angle rack
Features
Parts to fix Erlenmeyer flask by installing it on Universal shaking rack and angle rack
Specifications
| Model | CF-0300 |
| Application Container | 300ml Erlenmeyer flask |
| Standard Accessory | Spring |
Clamp
CF-0500
Product Code：0000470-000
Parts to fix Erlenmeyer flask by installing it on Universal shaking rack and angle rack
Features
Parts to fix Erlenmeyer flask by installing it on Universal shaking rack and angle rack
Specifications
| Model | CF-0500 |
| Application Container | 500ml Erlenmeyer flask |
| Standard Accessory | Spring， octagonal rubber sheet |
Rack for CS-LR
CS-3024
Product Code：0081705-000
Optional rack to set CS-LR above a water tray for use in a CO2 incubator
Water tray is not included
|
Example of combination with CO2 incubator and CS-LR |
|
Features
Optional rack to set CS-LR above a water tray for use in a CO2 incubator.
Specifications
| Model | CS-3024 |
| Dimensions | 247 x 307 x 58-73Hmm |
Dimensions
Spring net shaking rack
MR-2030
Product Code：0054735-000
Multipurpose shaking rack for various kinds of container's shape
Image of installation to
Shake-LR
Features
Recommended for simultaneous shaking of bottles of various sizes or reciprocal shake of test tubes since it has slip stopper. Use on original platform.
Specifications
| Model | MR-2030 |
| Applicable Container / Number | Outer diameter of ?12 - 16mm test tube and 15ml disposable centrifuge tube can be load 20 tubes when tilted about 30o |
| Dimensions | 200 x 300 x 95Hmm |
●Use at below 350rpm on Mix-VR.
Universal shaking rack
MT-2030
Product Code：0054736-000
It is suitable shaking rack to shake Erlenmeyer flask and centrifuge tube stably.
Image of installation 6 x CF-2050 to Shake-LR
Features
It is suitable shaking rack to shake Erlenmeyer flask and centrifuge tube stably. Combine clamp for Erlenmeyer flask (option) or slope clamp for centrifuge tube (option).
Specifications
| Model | MT-2030 |
| Dimensions | 200 x 300 x 23Hmm |
●Each clamp is option， see below.
Sticky sheet
ST-2030
Product Code：0054734-000
Non-slip sheet on stand
Image of installation to Shake-XR
Features
Use by spread on platform. Surroundings friendly special silicon is selected， restore adhesive force after water wash. Centrifuge tube holder can be use on this sheet.
Specifications
| Model | ST-2030 |
| Dimensions | 195 x 295 x 2Hmm |
●Use at below 100rpm on Shake-LR and Mix-VR.
●Standard accessory of Wave-PR/SI (dedicated type is attached to Wave-SI slim).
Double shaking rack
WR-2030
Product Code：0054737-000
Doubles working capacity with same area and one shaker.
Image of installation to Wave-SI
Features
Doubles working capacity with same area and one shaker. It is convenient to stain multiple mini gel at same time. Use on platform. One sticky sheet (ST-2030) is attached.
Specifications
| Model | WR-2030 |
| Dimensions | 204 x 304 x 168Hmm |
●One ST-2030 is attached
●Use at below 100rpm on Shake-LR.
●Loading limit is 1.2kg.
●When using on Shake-LR/XR， please purchase another sticky sheet (ST-2030).
Large shaking rack
WR-3636LR
Product Code：0055073-000
Large sized flask and tray for cell culture can be used on this. (Dedicated to Shake-LR)
Features
Large sized flask and tray for cell culture can be used on this. One dedicated sticky sheet is attached. Remove original platform from the shaker and replace with this.
Specifications
| Model | WR-3636LR |
| Dimensions | 364 x 364 x 12Hmm (dedicated sticky sheet: 360 x 360mm) |
●one sticky sheet attached
●Use at below 300rpm on Shake-LR
