技术参数：

技术参数Technical Data

最大记录时间：9999 分钟， 59秒 (l67小时)

MAXIMUM RECORDING TIME:9999 minutes， 59 seconds (l67 hours)

最小记录时间：1 秒

MINIMUM RECORDING TIME:1 second

转速：20转/分钟

STIR SPEED:20 rpm

温控范围：华氏150-350度 (66-177 摄氏度) +/-5% 手动调温

OPERATING TEMPERATURE， Standard HOTPOT:150-350 deg.F (66-177 deg.C) +/-5% of setting

电压：110v / 60Hz or 220v / 50Hz

ELECTRICAL REQUIREMENTS:110v / 60Hz or 220v / 50Hz

电源：3线插头

ELECTRICAL CONNECTION:3-wire grounded cord set

尺寸：7.5"长 x 9"高x 5.5"宽

DIMENSIONS:7.5"L x 9"H x 5.5"W

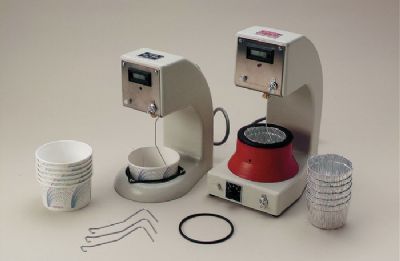

A device for determining the gel time of resinous plastics， adhesives， drying oils and two component elastomers and paints. A simple device for a simple test - designed to produce gel time with accuracy at ambient or shop temperatures.

适用：树脂、玻璃钢、复合材料、弹性体、硅化工、胶粘剂、密封胶等领域凝胶时间的测定

主要特点：

A low torque synchronous motor rotates a specially shaped stirrer in the catalyzed resin or elastomer. As gelation occurs， drag exceeds torque and the motor stalls. Gel time can then be read on the LCD display.

订货信息 简 单 描 述

GT-SHP "Hot Pot" Gel Timer (110V)

GT-SHP-220 "Hot Pot" Gel Timer (220 V)

GT-STHP-110 Stabltemp "Hot Pot" Gel Timer (110V)

GT-STHP-220 Stabltemp "Hot Pot" Gel Timer (220V)

GT-S Standard Gel Timer (110V)

GT-S-220 Standard Gel Timer (220 V)

GT-WS Wire Stirrers (100)

GT-AC Aluminum Cup Liners (100) for Hot Pots Only
