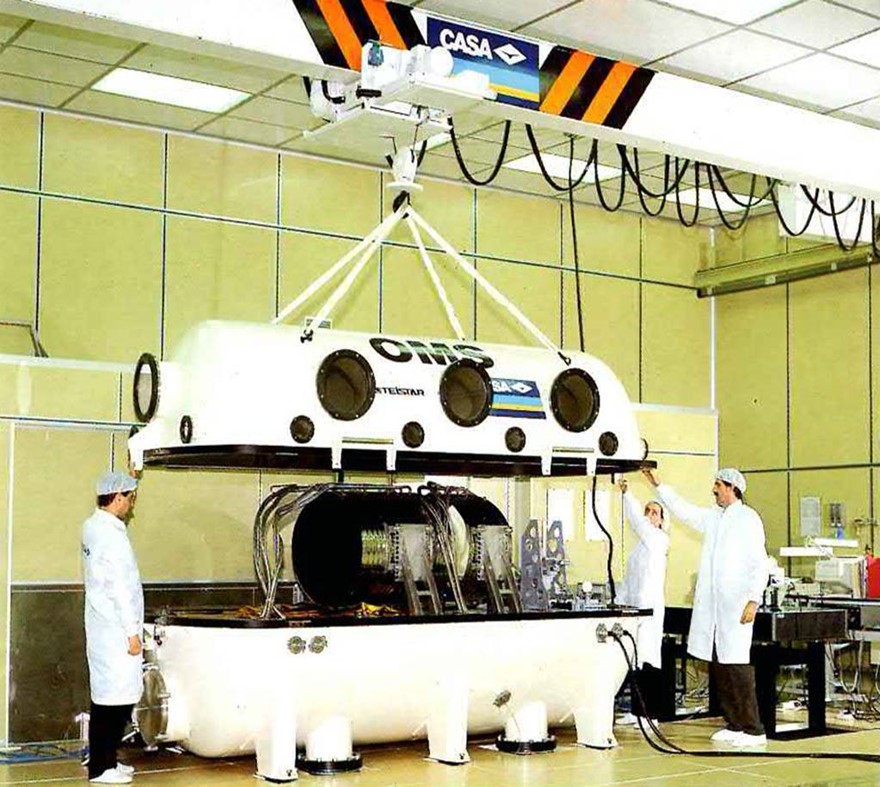

TELSTAR 太空热真空环境试验箱
产品介绍 Technical Data: 技术参数: Shape: Horizontal design. 外形:水平设计 Chamber dimensions: ? = 1,7 m, Length = 3,5 m. 腔体尺寸:? = 1,7 m, Length = 3,5 m. Vacuum better than: 1x10-5 mbar. 真空度:<1x10-5 mbar. Temperature range: from –55oC to +120oC. 温度范围:–55oC to +120oC Heating/Cooling speed at the shrouds: 1oC/min. 导热层加热冷却速率: 1oC/min. Shroud temperature uniformity: 2oC. 导热层温度均匀性: 2oC Working surface: optical table. 工作台面:光学桌子 特殊设计: Table supported on a seismic block, isolated from chamber supports. 工作桌面区别于腔体,单独固定在一个防震区块上。 4 shroud zones with independent temperature control. 四个区域拥有单独的温度控制模块。 TCU and vacuum pumps are in separated machinery room. 温度控制模块和真空泵在不同的房间 |
