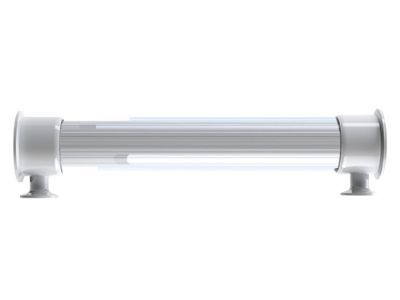

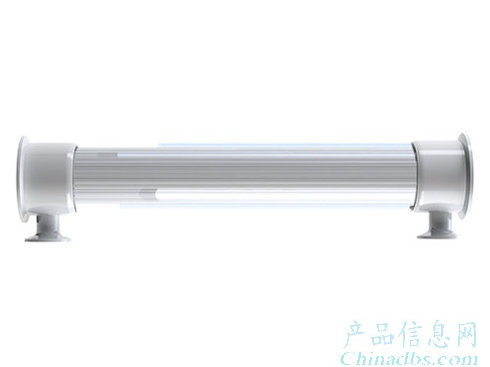

KrosFlo 聚砜过滤器组件
一次性切向流中空纤维膜组件
一次性KrosFlo中空纤维膜过滤器是进行生产规模料液快速过滤的理想设备，可提供极高的产品回收率。
中空纤维切向流过滤是对细胞收获和抗体生产进行温和过滤的***方法。
现已成为乳胶微粒处理方面的行业标准。
仕必纯KrosFlo组件的进/出口使用3英寸卫生接头用于进行样品循环，同时采用1 -1/2英寸卫生接头作为侧面滤液端口，用于收集滤液，而用于过滤介质的优质中空纤维膜灌封在耐腐蚀、高强度的聚砜外壳内。
该中空纤维膜的几何及毛细管流体动力学特性可提供稳定的过滤性能，且可实现从研发规模到生产规模处理容量的线性放大。
| 尺寸: |
| 表面积 | 组件长度 | 内径 | 总长 | 纤维有效长度 |
| 0.785-1.60 | 1xFL | 63.50 | 23 | 20.0 |
| 1.65-3.25 | 2xFL | 63.50 | 46 | 41.5 |
| 2.55-5.10 | 3xFL | 63.50 | 69 | 65.0 |
产品规格: |
| 外壳: | 聚砜 |
| 接头: | 33英寸卫生型TC进/出口接头 |
1-1/2英寸卫生型TC侧面端口
| 灌封: | 聚氨酯 |
| 处理容量: | 100L-1000+L |
|
| 膜 | 纤维号 | 截留分子量 |
| 改性聚醚砜(PES) | 0.5 mm | 3 kD， 5kD，10kD，30kD， 50kD， 70kD， 100kD， 500kD |
| 1.0 mm | 30kD， 50kD， 100kD， 500kD |
| 混合纤维素酯(ME) | 0.6 mm | 0.1 μm， 0.2 μm |
| 聚醚砜(PES) | 0.5 mm | 0.2 μm， 0.5 μm |
| 聚砜(PS) | 0.5 mm | 0.05 μm， 20 nm (500 kD)， 100 kD， 50 kD， 10 kD |
| 1.0 mm | 100 kD |
| 产品编号 | 孔径 | 内径 | 膜类型 | 表面积 | 长度 | 进/出端口 | 滤液端口 | 包装状态 |
| K02-S010-05-N | 10 kD | 0.5 mm | PS | 1.60 m2 | 1xFL | 3 inch |
|
|
Tri-Clamp
Tri-Clamp
| Dry |
|
|
|
|
|
|
| K02-S010-05-P | 10 kD | 0.5 mm | PS | 1.60 m2 | 1xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Wet |
|
|
|
|
|
|
| K02-S010-05-S | 10 kD | 0.5 mm | PS | 1.60 m2 | 1xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Sterile |
|
|
|
|
|
|
| K02-S050-05-N | 50 kD | 0.5 mm | PS | 1.60 m2 | 1xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Dry |
|
|
|
|
|
|
| K02-S050-05-P | 50 kD | 0.5 mm | PS | 1.60 m2 | 1xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Wet |
|
|
|
|
|
|
| K02-S050-05-S | 50 kD | 0.5 mm | PS | 1.60 m2 | 1xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Sterile |
|
|
|
|
|
|
| K02-S05U-05-N | 0.05 μm | 0.5 mm | PS | 1.60 m2 | 1xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Dry |
|
|
|
|
|
|
| K02-S05U-05-P | 0.05 μm | 0.5 mm | PS | 1.60 m2 | 1xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Wet |
|
|
|
|
|
|
| K02-S05U-05-S | 0.05 μm | 0.5 mm | PS | 1.60 m2 | 1xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Sterile |
|
|
|
|
|
|
| K02-S500-05-N | 500 kD | 0.5 mm | PS | 1.60 m2 | 1xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Dry |
|
|
|
|
|
|
| K02-S500-05-P | 500 kD | 0.5 mm | PS | 1.60 m2 | 1xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Wet |
|
|
|
|
|
|
| K02-S500-05-S | 500 kD | 0.5 mm | PS | 1.60 m2 | 1xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Sterile |
|
|
|
|
|
|
| K04-S010-05-N | 10 kD | 0.5 mm | PS | 3.25 m2 | 2xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Dry |
|
|
|
|
|
|
| K04-S010-05-P | 10 kD | 0.5 mm | PS | 3.25 m2 | 2xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Wet |
|
|
|
|
|
|
| K04-S010-05-S | 10 kD | 0.5 mm | PS | 3.25 m2 | 2xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Sterile |
|
|
|
|
|
|
| K04-S050-05-N | 50 kD | 0.5 mm | PS | 3.25 m2 | 2xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Dry |
|
|
|
|
|
|
| K04-S050-05-P | 50 kD | 0.5 mm | PS | 3.25 m2 | 2xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Wet |
|
|
|
|
|
|
| K04-S050-05-S | 50 kD | 0.5 mm | PS | 3.25 m2 | 2xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Sterile |
|
|
|
|
|
|
| K04-S05U-05-N | 0.05 μm | 0.5 mm | PS | 3.25 m2 | 2xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Dry |
|
|
|
|
|
|
| K04-S05U-05-P | 0.05 μm | 0.5 mm | PS | 3.25 m2 | 2xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Wet |
|
|
|
|
|
|
| K04-S05U-05-S | 0.05 μm | 0.5 mm | PS | 3.25 m2 | 2xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Sterile |
|
|
|
|
|
|
| K04-S500-05-N | 500 kD | 0.5 mm | PS | 3.25 m2 | 2xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Dry |
|
|
|
|
|
|
| K04-S500-05-P | 500 kD | 0.5 mm | PS | 3.25 m2 | 2xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Wet |
|
|
|
|
|
|
| K04-S500-05-S | 500 kD | 0.5 mm | PS | 3.25 m2 | 2xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Sterile |
|
|
|
|
|
|
| K06-S010-05-N | 10 kD | 0.5 mm | PS | 5.10 m2 | 3xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Dry |
|
|
|
|
|
|
| K06-S010-05-P | 10 kD | 0.5 mm | PS | 5.10 m2 | 3xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Wet |
|
|
|
|
|
|
| K06-S010-05-S | 10 kD | 0.5 mm | PS | 5.10 m2 | 3xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Sterile |
|
|
|
|
|
|
| K06-S050-05-N | 50 kD | 0.5 mm | PS | 5.10 m2 | 3xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Dry |
|
|
|
|
|
|
| K06-S050-05-P | 50 kD | 0.5 mm | PS | 5.10 m2 | 3xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Wet |
|
|
|
|
|
|
| K06-S050-05-S | 50 kD | 0.5 mm | PS | 5.10 m2 | 3xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Sterile |
|
|
|
|
|
|
| K06-S05U-05-N | 0.05 μm | 0.5 mm | PS | 5.10 m2 | 3xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Dry |
|
|
|
|
|
|
| K06-S05U-05-P | 0.05 μm | 0.5 mm | PS | 5.10 m2 | 3xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Wet |
|
|
|
|
|
|
| K06-S05U-05-S | 0.05 μm | 0.5 mm | PS | 5.10 m2 | 3xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Sterile |
|
|
|
|
|
|
| K06-S500-05-N | 500 kD | 0.5 mm | PS | 5.10 m2 | 3xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Dry |
|
|
|
|
|
|
| K06-S500-05-P | 500 kD | 0.5 mm | PS | 5.10 m2 | 3xFL | 3 inch |
Tri-Clamp
Tri-Clamp
| Wet |
|
|
|
|
|
|
| K06-S500-05-S | 500 kD | 0.5 mm | PS | 5.10 m2 | 3xFL | 3 inch |
Tri-Clamp
Tri-Clamp
