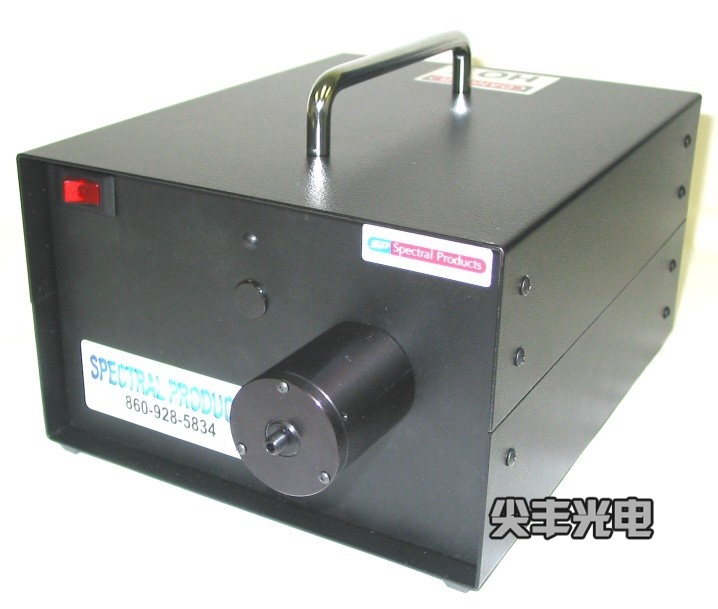

ASBN-D130深紫外氘灯光源(deep UV Deuterium Light Source Assembly)
型号： ASBN-D130
Spectral products专业制造深紫外氘灯光源ASBN-D130/230，波长范围从180-400nm，在紫外光提供率***光功率，可提供自由空间输出和光纤耦合书橱两种输出模式。
ASBN-D130内置一个30W氘灯，和电源适配设备。使用了一组适当的聚焦/校准双重棱镜使得光源能有***光功率输出。
一般用途，氘灯的光功率会低于卤素灯，但卤素灯在紫外光输出功率很低。在一些特殊的用途需要高功率的紫外光时，就需要氘灯光源。
Spectrum
The envelope of D2 lamp is made of fused silica. Its transmittance is as follows.
规格参数：
Feature | Value |
Lamp: | Type: Deuterium with fused silica jacket， mounted and pre-aligned. Power input: 30 Watt (nominal) per each lamp Lamp current: 300 ± 30 mA DC Average Life: 1000 hours (nominal) |
Lamp Housing: | 1" quartz doublet (f#/1， 1X) collection lens. Convection cooled. Dimension: 6" X 5" X 10" |
Power Supply: | Power input:115 vac， 50/60 Hz， 3 amps. 230 vac， 50/60 Hz， 1 amp， optional Power output: Constant current dc， 60-120vdc selectable， 300 mA DC Regulation: + 10 mA Stability: 100 ppm/°C Operating Temperature: 5-35°C |
Warranty: | One year |
Options: | Spare lamp (mounted and pre-aligned)， Specify SM， FC， ST， CL， or CS for specific fiber couplers. |
