产品简介

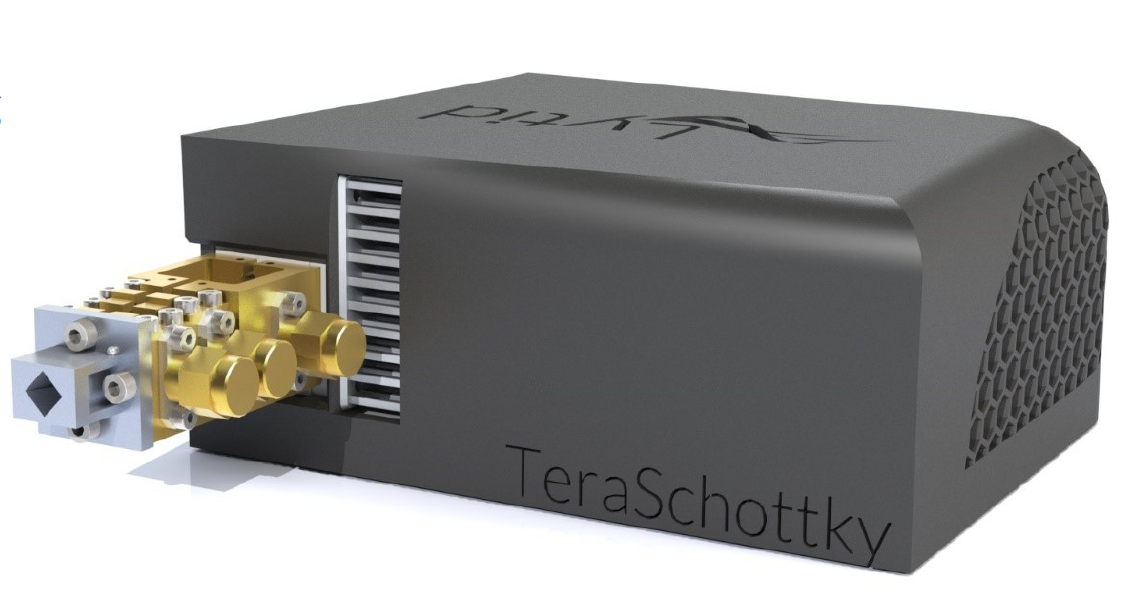

屹持光电推出的TeraSchottky肖特基亚太赫兹源基于肖特基二极管技术以及混频器技术，是一种频率可调谐的太赫兹源。基频源输出75GHz，频率可扩展至150GHz，300GHz，以及600GHz。肖特基二极管亚太赫兹源可输出上百mW的功率，TeraSchottky肖特基二极管太赫兹源可兼容"频率可调"以及“高功率输出”这两个特点。TeraSchottky肖特基二极管太赫兹源是集成化的，即插即用，可利用软件远程控制获得更好的用户体验。衍生于欧洲太空项目，TeraSchottky肖特基二极管太赫兹源确保其高可靠性。

产品特点

√  紧凑，可靠的亚太赫兹源；

√  高的功率输出，可达上百mW;

√  频率可扩展至600GHz+

√   快速频率转化速度

√   重量轻，只有800g

√   宽带可调谐

√  100%即插即用

√  可完全编程扫描

技术参数

具体参数信息：

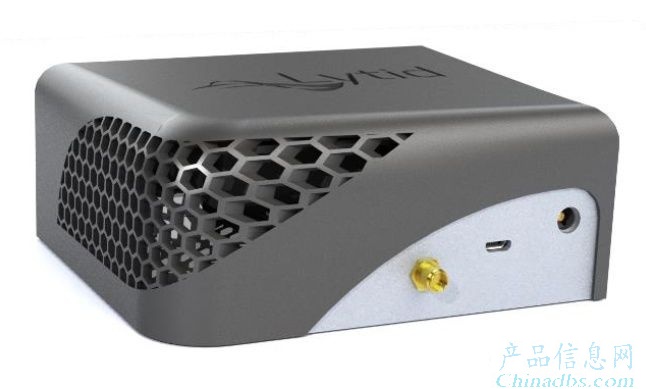

1. TeraSchottky Base Unit 75GHz

AC Power supply 100-240V -> DC 12V

Easy software with USB control

x4 high power active freq. multiplier 67.5-80 GHz

Input port : SMA K connector 2.92mm

Output port : WR12 (UG387/UM) 67.5-80GHz

Output power in this configuration: Typ. 200mW

   Integrated RF synthetizer

Frequency band 10Mhz - 25GHz

-100 dBc/Hz at 10GHz (10kHz offset)

Integrated in the TeraSchottky base unit

Programmable frequency sweep

<1ms switching time

Digital trigger IN/OUT

Output port : SMA K connector 2.92mm

Remote control (USB) / Labview

2. 150GHz standard extension

x2 frequency multiplier extension 135-160GHz

Input port : WR12 (UG387/UM) 67.5-80GHz

Output port : WR6.5(UG387/UM) 135-160GHz

Conversion efficiency Typ. 30%

Output power in this configuration: Typ. 60 mW

3. 300GHz standard extension

x2 frequency multiplier extension 300GHz

Input port : WR6.5 (UG387/UM) 135-160GHz

Output port : WR3.4(UG387/UM) 270-320GHz

Conversion efficiency Typ. 20%

Output power in this configuration: Typ.12 mW

4. 600GHz standard extension

x2 frequency multiplier extension 600GHz

Input port : WR3.4(UG387/UM) 270-320GHz

Conversion efficiency Typ. 10%

Output power in this configuration: Typ. 1 mW

Output port : WR1.5(UG387/UM) 540-640GHz

天线可选组件：

1. Diagonal Horn antenna 75 GHZ

WR12(UG387/UM) flange， 23 dbi gain， 11° E 13° H

2. Diagonal Horn antenna 150 GHz

WR6.5(UG387/UM) flange， 25 dbi gain， 9° E 10° H

3. Diagonal Horn antenna 300 GHz

WR3.4(UG387/UM) flange， 26 dbi gain， 10° E 10° H

4. Diagonal Horn antenna 600 GHz

WR1.5(UG387/UM) flange， 26 dbi gain， 10° E 10° H
