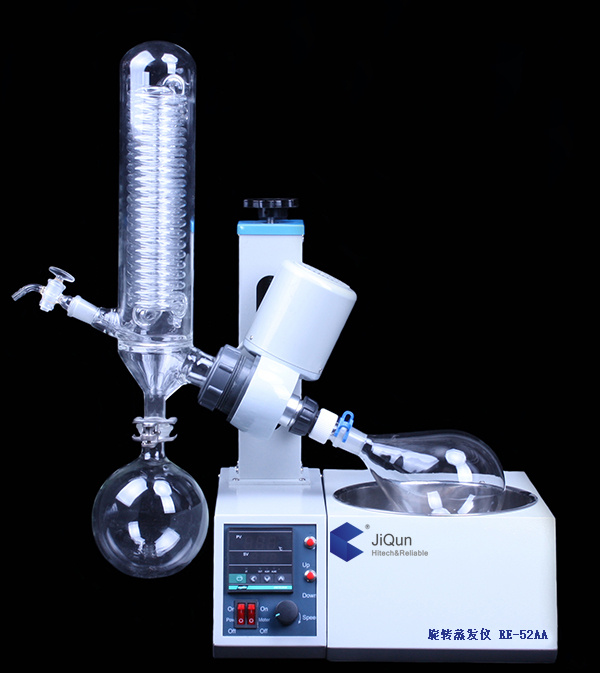

RE系列旋转蒸发仪(器)能在恒温加热、负压条件下旋转形成薄膜,高效蒸发,然后再冷却回收溶媒,特别适合对热敏感物料结晶、分离、溶媒回收等作业,部分机型还能做回流提取.是生物、医药、化工、食品行业科研生产的重要仪器设备.
◆独特的密封结构和精选密封材料,耐蚀性强
◆高蒸发效率,高回收率
◆模块式系列化设计,可扩展性强
◆装拆方便,操作方便,维修方便
◆不锈钢(特殊塑料)底盘,立柱,立轴,铝合金铸件,造型美观,耐腐蚀
◆关键密封件,电子原件为进口件
型号Model | R206D | RE-5299 | RE-307B | RE-502B | RE-52A | RE-52AA |
Glass | 材质Material | GG-17低碱高硼硅玻璃:含硅量80.7%, 热膨胀系数: 20~300℃ 3.3×10-6K-1耐水性1级,应变温度540℃, 退火温度560℃, 软化温度820℃ GG-17 Low alkali high borosilicate glass: silicon content: 80.7%, coefficient of thermal expansion: 20~300℃, 3.3×10-6K-1, waterproof 1 grade, strain temperature 540 ℃, annealing temperature is 560 ℃, softening temperature 820 ℃ |
厚度Thickness (mm) | 2~5 | 5~8 |
蒸发瓶容量 Evaporating flask volume(ml) | 1000 | 3000 | 5000 | 1000 | 1000 |
收集瓶容量 Collecting flask volume(ml) | 500 | 1000 | 3000 | 500 | 500 |
Rotary parts | 电源Power supply | 220V/50Hz |
|
常规电机功率 Common motor power (W) | 40W | 60W | 40 | 40 |
转速Rotary speed (rpm) | 0~160 |
Water bath | 温控Temperature control | 室温~99℃(可选配油浴加热), 精度±1.0, 分辨率0.1 Room temperature-99℃(optional heating oil bath), accuracy: ±1.0, resolution: 0.1 |
电源Power supply | 220V/50Hz | 380V50Hz |
加热功率Heating power (W) | 1500 | 2000 | 3500 | 4500 |
升降距离Lifting distance(mm) | 150 | 200 | 150 | 150 |
