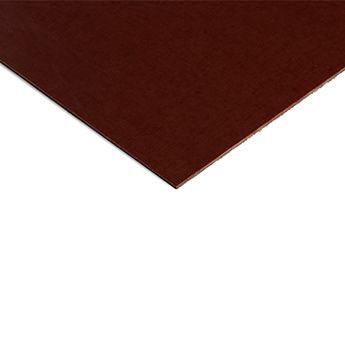

织物增强酚醛树脂,片, Phenol, 1.6mm厚
产品介绍 | 订货号 | 包装规格 | | Sizes | | 321-956-62 | 145 mm x 145 mm | | 080-186-70 | 295 mm x 295 mm |
产品参数 | Thickness[厚度] | 1.6mm | | Mechanical Properties(机械性能) | | Compressive strength - longitudinal ( MPa ) | 310 | | Compressive strength - transverse ( MPa ) | 200 | | Shear strength - in-plane ( MPa ) | 90 | | Tensile strength - longitudinal ( MPa ) | 68 | | Thermal expansion coefficient - long. ( x10⁻⁶ strain K⁻¹ ) | 22 | | Young's modulus - longitudinal ( GPa ) | 6.3 | | Young's modulus - transverse ( GPa ) | 6.3 | | Physical Properties(物理性质) | | Density ( g cm⁻³ ) | 1.360 | | Thermal Properties(热性能) | | Upper working temperature ( C ) | 130 |
其他参数 公差 | 长度 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% | | 直径 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% | | 厚度 | | ±10% |
|---|
| 陶瓷 | ±20% | | 复合材料 | ±20% | | 聚合物 | ±20% | | 长度 1 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% | | 长度 2 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% |
| |
