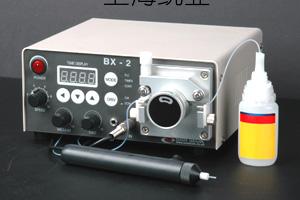

BX-2 型蠕动式点胶机的特点：
▶ 铁氟隆软管磨损少，点胶时没有脉动现象。
▶ 具有回吸、逆转，自动定时功能。
▶ 适用于瞬干胶，墨水等低黏度液体且少量吐出。
▶ 具有手动/自动定时器调节点胶量功能，操作简便。
▶ 无需压缩空气即可直接从胶水包装容器内吸出胶液进行点胶。
技术参数 ★ 技术规格 TECHNICAL DATA
① 最小滴液量:0.001mg
② 点胶时间控制:0.01~99.99sec
③ 凸轮转速:0~120rpm(max)
④ 胶水流量:0.01~6ml/min(Teflon Tube)，0.01~20ml/min(Silicon Tube)
⑤ 容许的胶水最大粘度:300cps
⑥ 出胶口压力:0.15kg/cm
⑦ 外形尺寸:232mm×186mm×81mm
⑧ 电源:AC 220V/60HZ 110V/60HZ
Pump head | Using tube | Size (In Dia X Out Dia) |
M type | Teflon | 0.3 X 0.8 (30G) |
S type | Teflon | 0.5 X 1.0 (26G) |
|
| 0.6 X 1.1 (24G) |
|
| 0.7 X 1.2 (22G) |
T type | Teflon | 0.9 X 1.5 (20G) ~ 3.8 X 4.4 (7G) |
G type | Silicone | 0.5 X 2.5 ~ 8 X10 |
Model | BX-2 |
Control method | Electronic / Rotary tubing system |
Dispensing pressure | 0.15kg/㎠ |
Time range | 0.01~99.99sec |
Rotor speed | 0~120rpm(max.) |
Flow speed | 0.01~6ml/min.(Teflon tube)
0.1~20ml/min.(Silicone tube) |
Material viscosity | 300cps(max.) |
Pump direction | Both direction (Forward & reverse) |
Power source | AC100~220V 50/60Hz (Free voltage) |
External Dimension and Weight | 190(W) X 165(D) X 81(H)mm, 2.6Kg
|
