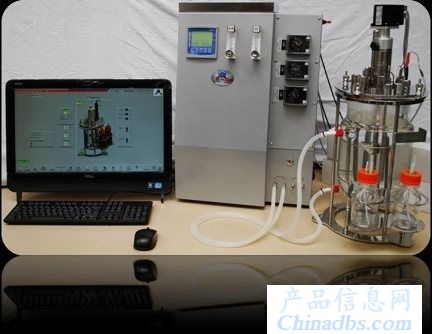

 产品介绍 About SYSBIOTECH 5-7L Bioreactor with GX controller and C-Bio software 配备有C-Bio软件GX控制系统的法国赛思5-7L细胞培养系统 The GX controller oversaw by the C-Bio software can control one autoclaving bioreactor according to its configuration (simple) The fermenter which goes with this system is a double jacketed fermenter of 5-7L with head plate probes. 该5-7L反应器配备了由C-Bio软件监控的GX控制器根据其配置可以控制一个可高压灭菌的生物反应器。与该系统关联的是一个5-7L双夹套生物反应器，带有安装在顶板上的各种电极。
Description Of The Equipment Features /设备功能描述 The equipment configuration is designed for the bacterial or cellular fermentation with the following features : /设备配置用于细菌发酵或细胞培养，具有以下功能： C= Control /控制 R= Regulation /调整M= Measure /检测A= Relay action /动作
The Fermenter 反应器
-The probes of the physical measure are put in place on specifics ports on the bioreactorplatinum./用于物理测量的电极插入生物反应顶板上特定的接内。 -The control of the temperature is provided by an internal exchanger in the controller with circulation of thermostated water in a double jacket./ 控制器内的内置热交换器控制温度，双夹套内的恒温水循环。 -A stirring motor /一个搅拌电机 -A fully configurable head plate with standard ports /一个配标准接口的完全可配置顶板
The head plateg /顶板
- The head plate is designed with configurable ports /顶板设计可配置接口 - Electropolished Stainless steel 316L /电抛光不锈钢316L - Fixing system with 4 screws /4个螺丝固定 The connection head plate /顶板连接件
Several types of ports are available /几款可用接口类型 -Connections for probes /电极连接件 -Connections for sample pipes /取样管连接件 -Inoculation connections /接种连接件 -Septum connections /隔膜连接件 -Connections for level probes /液位电极连接件 -Connections of additions /补料连接件
Its Environment /环境
Control System /控制系统 Overview /综述 The GX-GPC is designed to receive electrical components and accessories to control the bioreactor. GX-GPC通过接收电子元件和附件从而控制生物反应器。 Bio-C software can control up to 8 simultaneous bioreactors. The configuration which is proposed is a PC for one bioreactor (a console C-Bio GX can receive the complete configuration for two bioreactors). Bio-C软件可以同时控制最多8个生物反应器。提议的配置是一台电脑控制一个生物反应器（1个控制台C-Bio GX可以接收用于两个生物反应器的完整的配置）。 External dimensions for a single GX controller : / 一个独立的GX控制器的外部尺寸：
PC Datasheet /PC数据表 Computer control unit “all-in-one” is located on a fixed support and connected to the module GX-GPC by Ethernet， so you have a direct access to all the software functions. 一体化电脑控制单元位于一个固定支架上，并通过以太网连接至GX-GPC组件，可以直接访问软件的所有功能。 The Software C-Bio /C-Bio软件

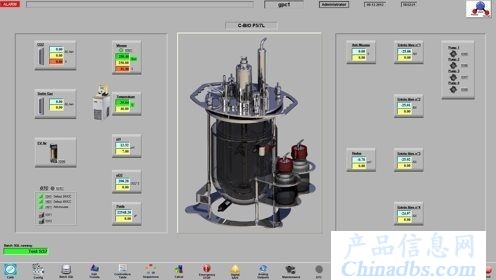

The Software control runs under Microsoft Windows XP or 7 Pro operating system. Developed from a development platform well-known on the market; "LabWindows" NATIONAL INSTRUMENT， the C-BIO is a dedicated application for fermentation and cell culture. The software is available in three languages: English， French and Russian 软件控制在微软Windows XP或7专业版操作系统下运行。在市场上知名的"LabWindows" NATIONAL INSTRUMENT开发平台中得以发展；C-BIO是一个专用于发酵和细胞培养的应用程序。该软件支持三种语言：英语，法语和俄语 Synoptic example : /摘要示例： Data management， SQL base /数据管理，SQL数据库

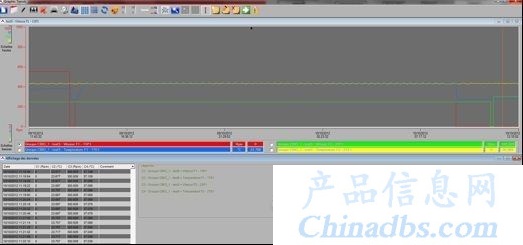

. 12 trends can be edited at the same time /可以同时编辑12种趋 . The database can be edited in the form of grafic or text /可以以图形或文本的形式编辑数据库 . It’s possible to compare several data Batches /可以比较多个批次的数据 . The database is recorded in .csv format /数据库以.csv格式记录 . The recorded files can be transfered on an electronic medium or on the network in .csv， .txt ou .xls format /记录的文件可以以.csv，.txt或.xls格式在电子媒介或网络中传输 When the recorded file is open， it appears in .csv /当记录的文件被打开时，以.csv显示 |
