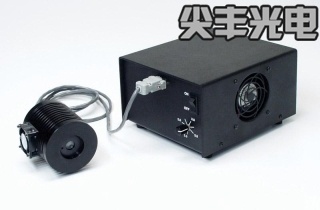

30W高稳定卤素灯(30W High Stability Tungsten-Halogen Light Source)
型号： ASB-W-030
产品简介：ASB-W-030是一个300-2600nm的紧凑型卤钨灯，优化设计使得最的功率应用于CM和DK系列单色仪，3100°K色温下可工作400小时。
Feature | Value |
Lamp: | Type: Tungsten-halogen Filament size: 1mm x 4mm Power input: 30 Watts (nominal) Light Output: 800 lumens (nominal) Current: 2.75 amp (nominal) Color Temperature: 3100°K Average Life: 400 hours (nominal) Spectral distribution: near blackbody |
Mount: | Tapered flange， adjustable， Post mounting for standalone operation |
Housing: | Air cooled with focusable fused silica doublet collection lens， f/1.9 collection and f/3.9 output. (lamp cross section) |
Power Input: | 115 VAC， 50/60 Hz， 1 amp (standard) 220 VAC， 50/60 Hz， 0.5 amp (optional) |
Power Output: | Type: constant current DC Range: 2.0 amp to 3.5 amp Regulation: 0.05% |
Warranty: | One year |
Options: | Spare lamp ASB-W-030B AF Series for remote fiber optic illumination. |
