K19 Dye
产品价格
| 产品编号 | 品牌 | 包装单位 | 单价(元) | 现货 |
| 3102363 | Sigma-Aldrich | 250 MG | 2460 | 请咨询 |

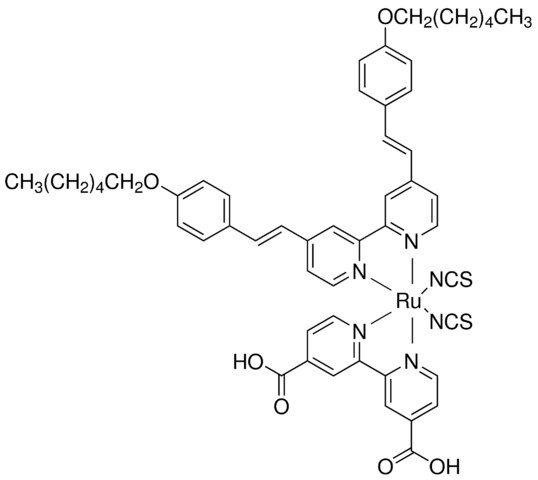

结构式
 |
基本信息
| PubChem Substance ID【PubChem化学物质编号】 | 329768273 |
| NACRES | NA.23 |
| General description【一般描述】 | K19 Dye is an amphiphilic ruthenium sensitizer with a good molar extinction coefficient, which remains stable under thermal stress and light soaking. It can be synthesized by forming a reaction mixture of 4,4′-Bis(p-hexyloxystyryl)-2,2′-bipyridine, dichloro(p-cymene)ruthenium(II) dimer, and 4,4′-dicarboxylic acid-2,2′-bipyridine. It shows an overall power conversion efficiency (PCE) of 11% and can be used as an active material in electrochemical applications. |
| Application【应用】 | K19 Dye is an organo-metallic dye that can be used as a photosensitizing material in the fabrication of dye sensitized solar cells (DSSCs). It shows a short circuit photocurrent density of 15.1 mA/cm2, an open circuit voltage of 747 mV and a fill factor of 0.69. Electron transfer from K-19 dye to the conduction band of Titania is completed within 20 fs while charge recombination has a half-life of 800 μs. The high extinction coefficient of this sensitizer enable realization of a new generation thin-film dye-sensitized solar cells (DSCs) yielding high conversion efficiency at full sunlight, even with viscous electrolytes based on ionic liqs. or nonvolatile solvents, making solar cell devices exhibit excellent stability under light soaking. |
| Legal Information【法律信息】 | Dyesol® Product. Dyesol is a registered trademark of Dyesol Ltd. Dyesol is a registered trademark of Greatcell Solar |
产品性质
| Quality Level【质量水平】 | 100 |
| Assay【测定】 | 85% (HPLC) |
| form【形式】 | powder (black) |
| mp | >300 ℃ |
| λmax | 536, 357, 311 nm at 0.02 mM in DMF (lit.) |
| SMILES string | OC(C1=CC(C2=CC(C(O)=O)=CC=N2)=NC=C1)=O.S=C=N[Ru]N=C=S.CCCCCCOC(C=C3)=CC=C3/C=C/C4=CC=NC(C5=NC=CC(/C=C/C6=CC=C(OCCCCCC)C=C6)=C5)=C4 |
| InChI | 1S/C38H44N2O2.C12H8N2O4.2CNS.Ru/c1-3-5-7-9-27-41-35-19-15-31(16-20-35)11-13-33-23-25-39-37(29-33)38-30-34(24-26-40-38)14-12-32-17-21-36(22-18-32)42-28-10-8-6-4-2;15-11(16)7-1-3-13-9(5-7)10-6-8(12(17)18)2-4-14-10;2*2-1-3;/h11-26,29-30H,3-10,27-28H2,1-2H3;1-6H,(H,15,16)(H,17,18);;;/q;;2*-1;+2/b13-11+,14-12+;;;; |
| InChI key | HBARXZGSEMEPLK-BPSJQPAOSA-N |
| packaging【包装】 | 250 mg in glass insert |
安全信息
| Pictograms【象形图】 | GHS07 |
| Signal word【警示用语：】 | Warning |
| Hazard Statements | H315 - H317 - H319 - H335 |
| Precautionary Statements | P280 - P302 + P352 - P305 + P351 + P338 |
| Hazard Classifications【危险分类】 | Eye Irrit. 2 - Skin Irrit. 2 - Skin Sens. 1 - STOT SE 3 |
| Target Organs【靶器官】 | Respiratory system |
| Storage Class Code【储存分类代码】 | 11 - Combustible Solids |
| WGK | WGK 3 |
